Chi tiết sản phẩm

Cáp 0.6/1kV SICI

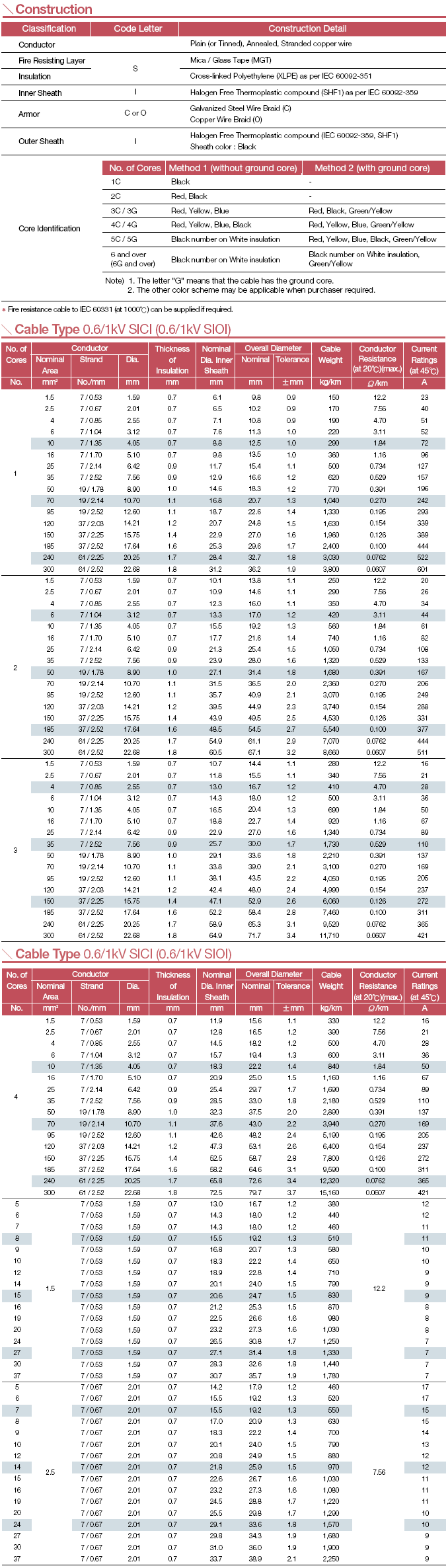

hinh_anh

Cable Designation

0.6/1kV SICI

0.6/1kV SIOI



Application

This cable is designed for power, lighting & control circuits up to 0.6/1kV.

Suitable for use in commercial marine applications

Maximum conductor temperature : 90degree



Application Standard

Design Guide         : IEC 60092-350, 353

Insulation Material : IEC 60092-351

Sheath Material     : IEC 60092-359

Flammability           : IEC 60332-1 & IEC 60332-3 Category A

Fire Resistance      : IEC 60331 (750 0C or 1000 0C)

Halogen Content   : IEC 60754-1,2, 0.5%(Max.)

Smoke Emission    : IEC 61034-1,2, 60%(Min.)
