Chi tiết sản phẩm

Cáp 0.6/1kV TFOI (Armored)

hinh_anh

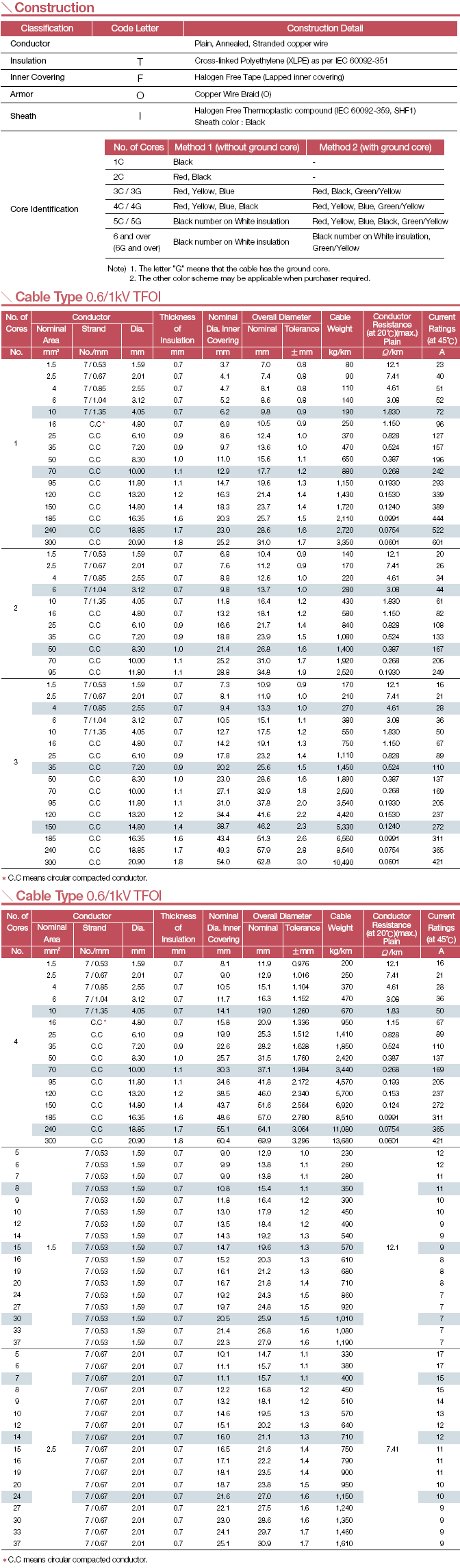

Cable Designation
0.6/1kV TFOI

Application
This cable is designed for power, lighting & control circuits up to 0.6/1kV.
Suitable for use in commercial marine applications
Maximum conductor temperature : 90degree


Application Standard
Design Guide          : IEC 60092-350, 353
Insulation Material  : IEC 60092-351
Sheath Material       : IEC 60092-359
Flammability            : IEC 60332-1 &
IEC 60332-3 Category A
Halogen Content     : IEC 60754-1,2, 0.5%(Max.)
Smoke Emission       : IEC 61034-1,2, 60%(Min.)
